TECHNICALLY COMPLEX PROJECT
JORHAT AIRPORT
Rowriah, Jorhat, Assam, India
26.72441 N, 94.16387 E
Established in the early 1950s and is managed by the Airports Authority of India (AAI).
It is a dual-use airport, serving both civilian flights and Indian Air Force operations,
11.11%
incease in passenger
from April 2023 to March 2024 handling 168,468 passengers
1703
Aircraft
Established in the early 1950s and is managed by the Airports Authority of India (AAI).
PRIMARY RESEARCH
180
Average of 180
Passengers according to Indigo officials
165
On day of research 165 passengers 166 check in bags
10
flight per week
7 Indigo
3 Air alliance
6
Check In counter
3 Indigo
1 Air alliance
2 Not assigned
A

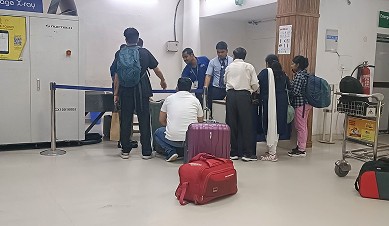

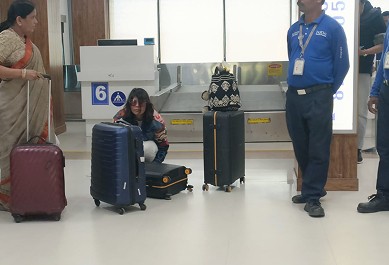

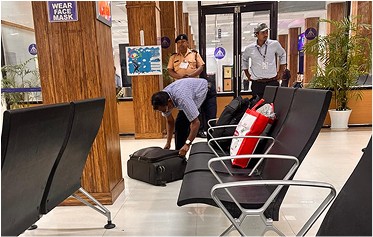

People speaking with officials to understand why their bags are stopped, while others wait their turn. Some sit on the ground, unpacking belongings for screening.
B

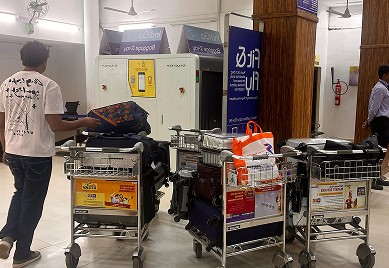

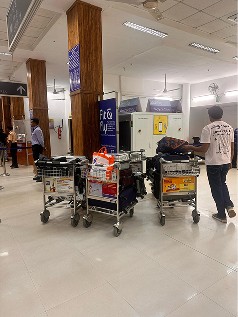

Trolleys full of bags waiting for baggage screening, with long queues during peak hours.
c
5 people had to open up their bags sitting on the ground.

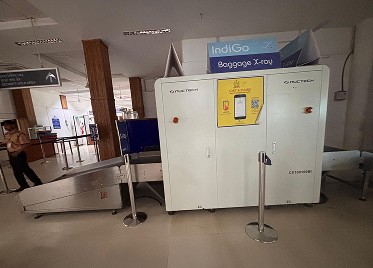

Baggage Xray Machine
CX100100BI | X-ray Inspection System.
People opening up bags on ground to rearrange and manage overweight.
More people lined up for baggage screening, while one person, feeling embarrassed, sat on the ground sorting through their belongings.
C
Peak crowding 12:30 pm to 1:45 PM
The security check in area one person on the other side waiting for re screening of their hand bag.
Around 2 out of 10 passengers had to remove, shift, or discard belongings due to restricted items found in their hand luggage.
People having to place their trays on the floor due to lack of space.
c
A bottleneck created because of multiple re-screening and people opening and closing luggages.

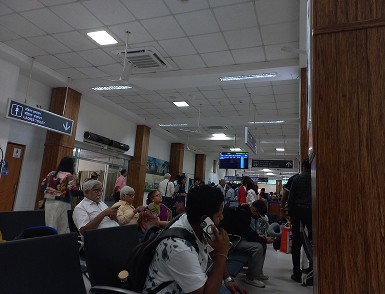

Lining up of people because of delay in security check counter.
Blockage at the screening area when 12 people come together .

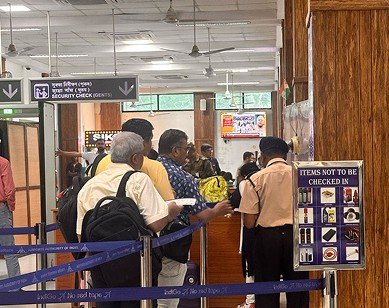

People waiting outside Security check area because there were stopped from entering the area.
People being stopped from entering the Security check line because of screening issue of some visitor.

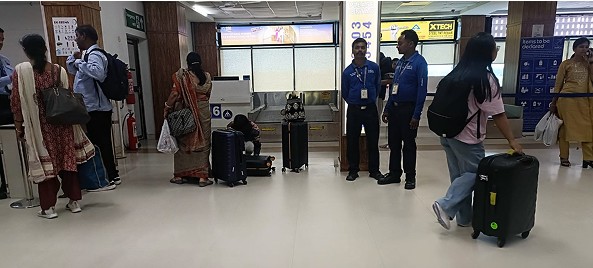

People waiting in front of the Screening area with baggages.
ETD (Explosive Trace Detector) machine used to detect explosives during bag screening.
A person almost openning their bag at the floor because of delay and unavailability of counter space.
c
People come with a lot of bag and often forget which bag contains what.
Most people let go of the trolley midway beside the screening machine .

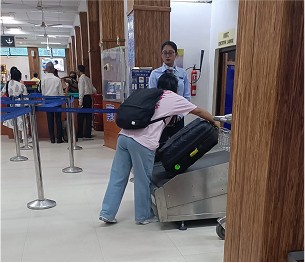

People struggling to put on their luggage on the baggage screening belt.
People struggling to put on their luggage on the baggage screening belt.
During peak hours about 24-29 people are there at a time.
C

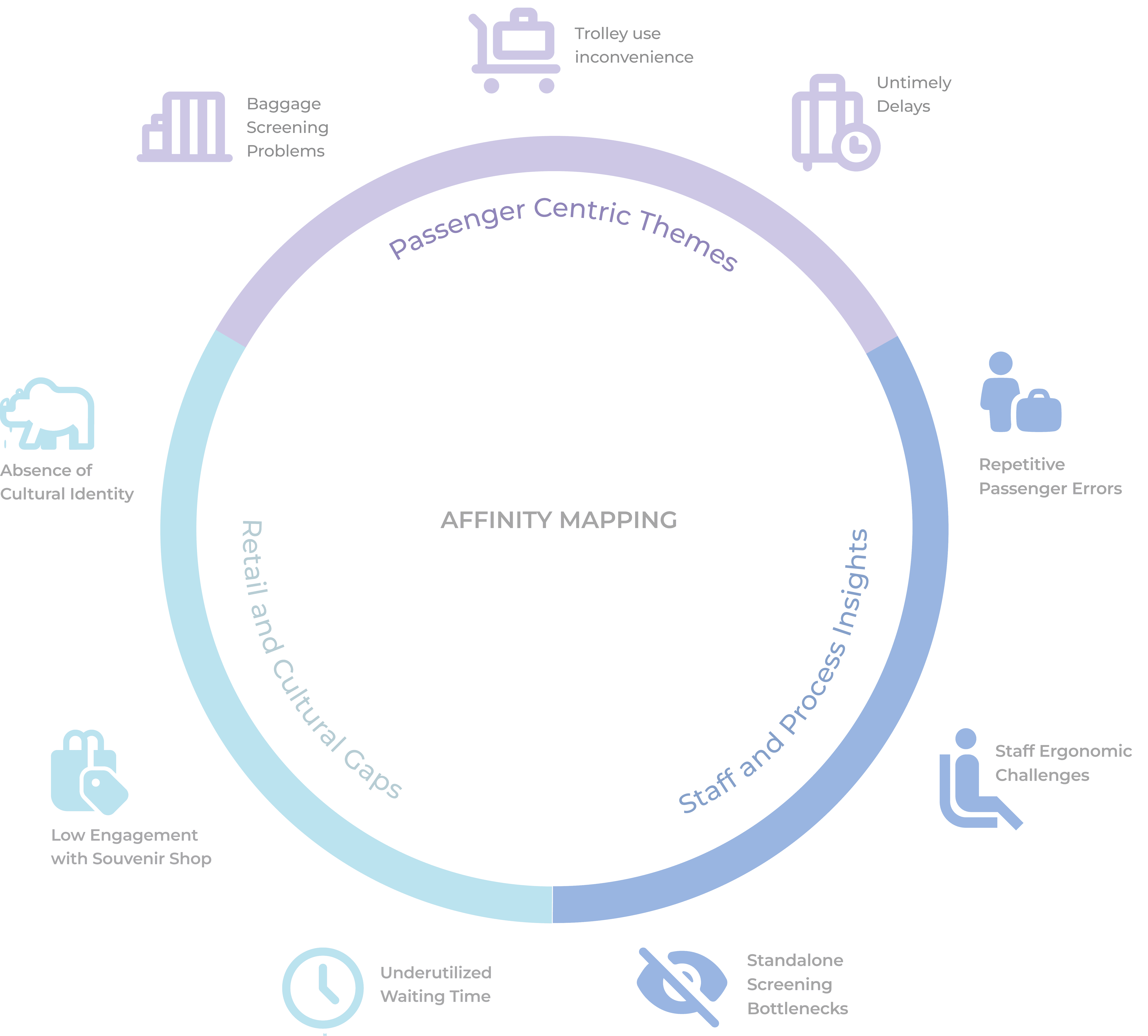

Observations
Difficulty putting on the luggage's onto conveyors
People unaware what to carry what not to.
Indian family can stuff large ( 6-7) amount of luggage into a trolley
mostly 2 people can use one trolley
Medium sized bags are most common
A lot of things are thrown away at the security check area
People sit on ground to rearrange things.
Advantages:
Limitations:
Provides comprehensive internal views, aiding in accurate diagnosis.
Capable of imaging complex structures and tissues.
Rapid scanning process, beneficial in emergency situations.
Computed
Tomography (CT)
Higher radiation exposure compared to standard X-rays.
Requires significant computational resources for image processing.
Larger and more expensive equipment, limiting accessibility in some settings.
Provides comprehensive internal views, aiding in accurate diagnosis.
Capable of imaging complex structures and tissues.
Rapid scanning process, beneficial in emergency situations.
2D X-ray
Higher radiation exposure compared to standard X-rays.
Requires significant computational resources for image processing.
Larger and more expensive equipment, limiting accessibility in some settings.
Provides comprehensive internal views, aiding in accurate diagnosis.
Capable of imaging complex structures and tissues.
Rapid scanning process, beneficial in emergency situations.
Computed
Tomography (CT)
Higher radiation exposure compared to standard X-rays.
Requires significant computational resources for image processing.
Larger and more expensive equipment, limiting accessibility in some settings.
PROBLEM STATEMENT
Airports face frequent delays at baggage screening due to passenger confusion regarding item categorization, restricted goods, and improper packing. These issues result in repeated repacking, manual inspections, longer queues, discarded passenger belongings, and increased operational strain on security staff.
DESIGN BRIEF
Develop a solution that enables passengers to screen both hand and check-in baggage for security compliance early in the airport process, allowing passengers to rearrange or repack items as needed.
Provides comprehensive internal views, aiding in accurate diagnosis. Capable of imaging complex structures and tissues. Rapid scanning process, beneficial in emergency situations.
Provides comprehensive internal views, aiding in accurate diagnosis. Capable of imaging complex structures and tissues. Rapid scanning process, beneficial in emergency situations.
Provides comprehensive internal views, aiding in accurate diagnosis. Capable of imaging complex structures and tissues. Rapid scanning process, beneficial in emergency situations.
Provides comprehensive internal views, aiding in accurate diagnosis. Capable of imaging complex structures and tissues. Rapid scanning process, beneficial in emergency situations.

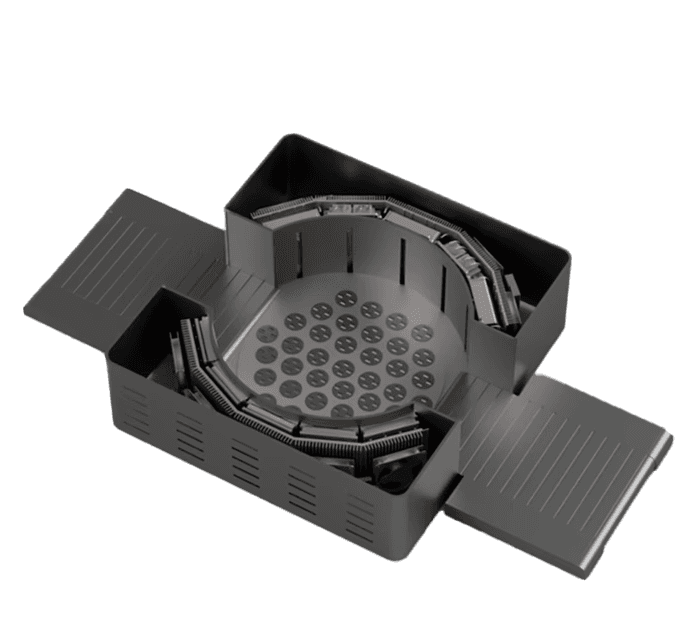

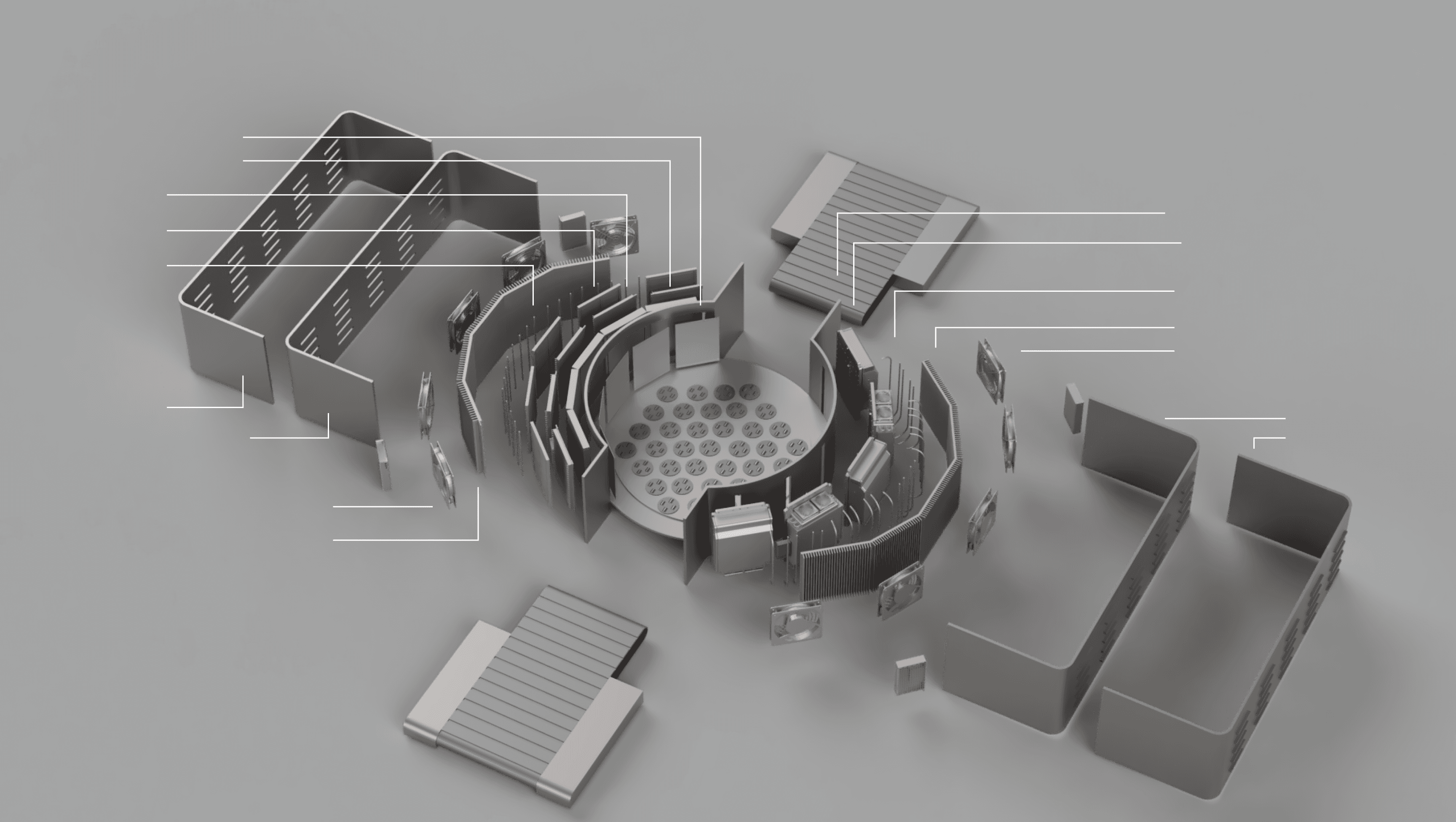

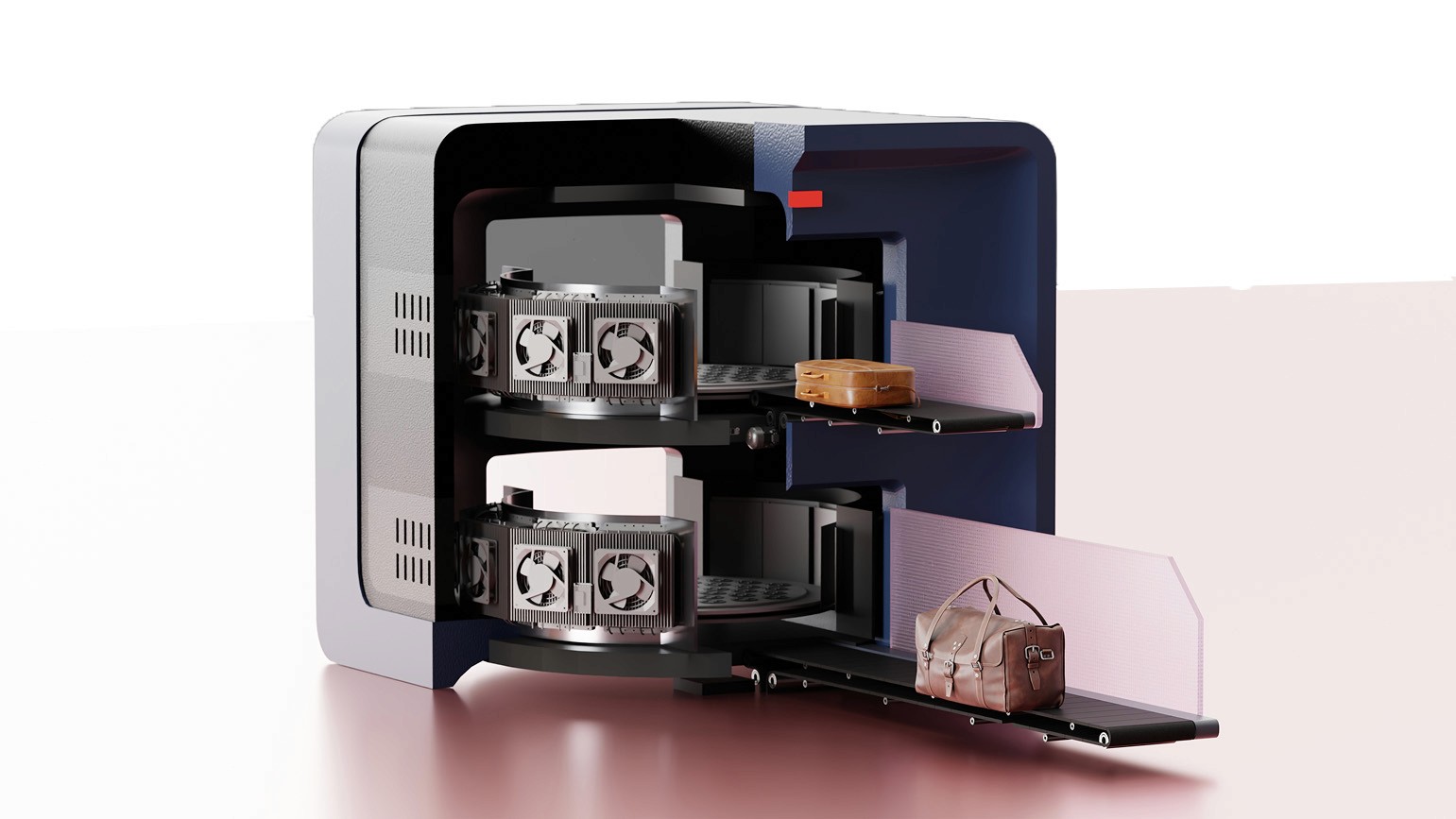

INTERNAL TECHNICALITIES

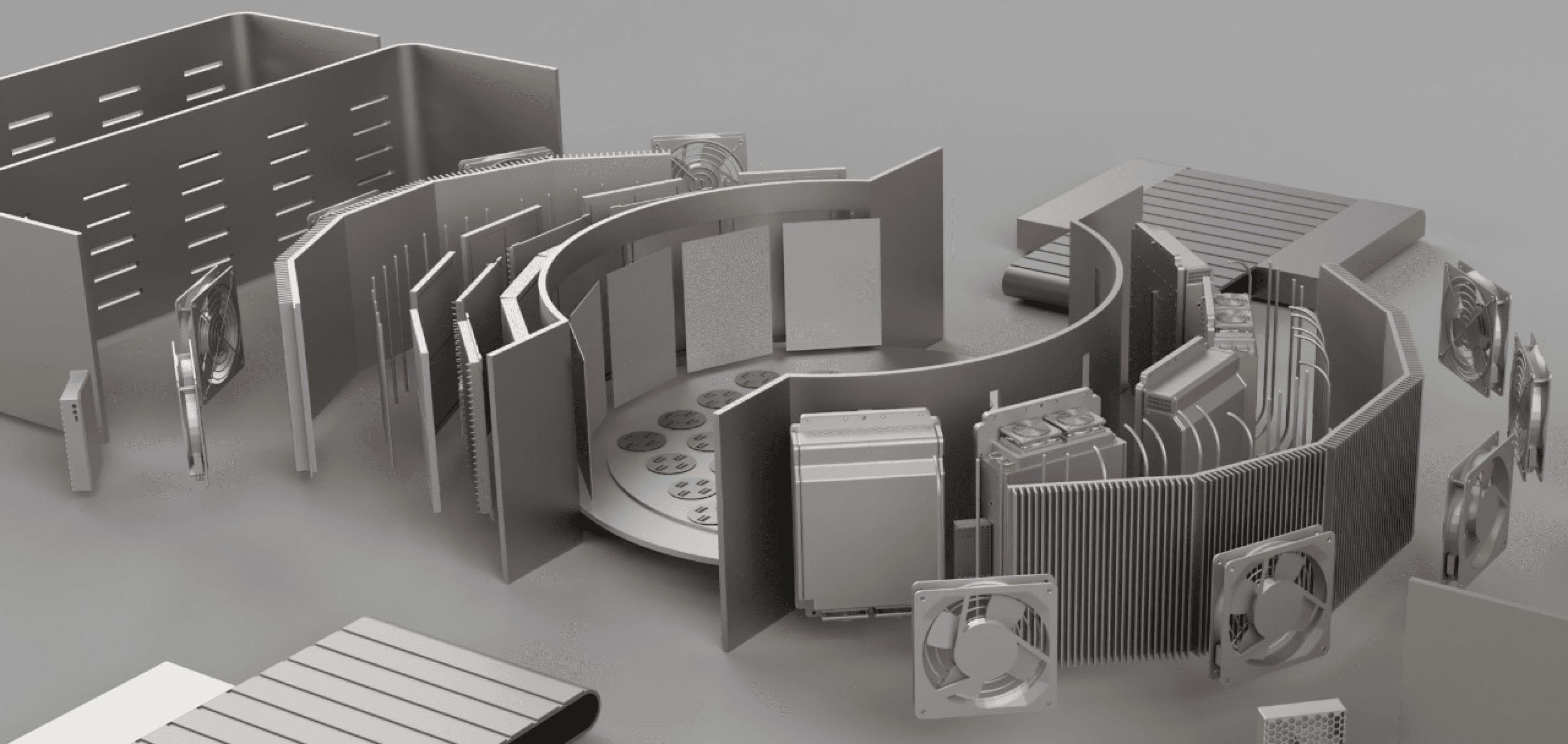

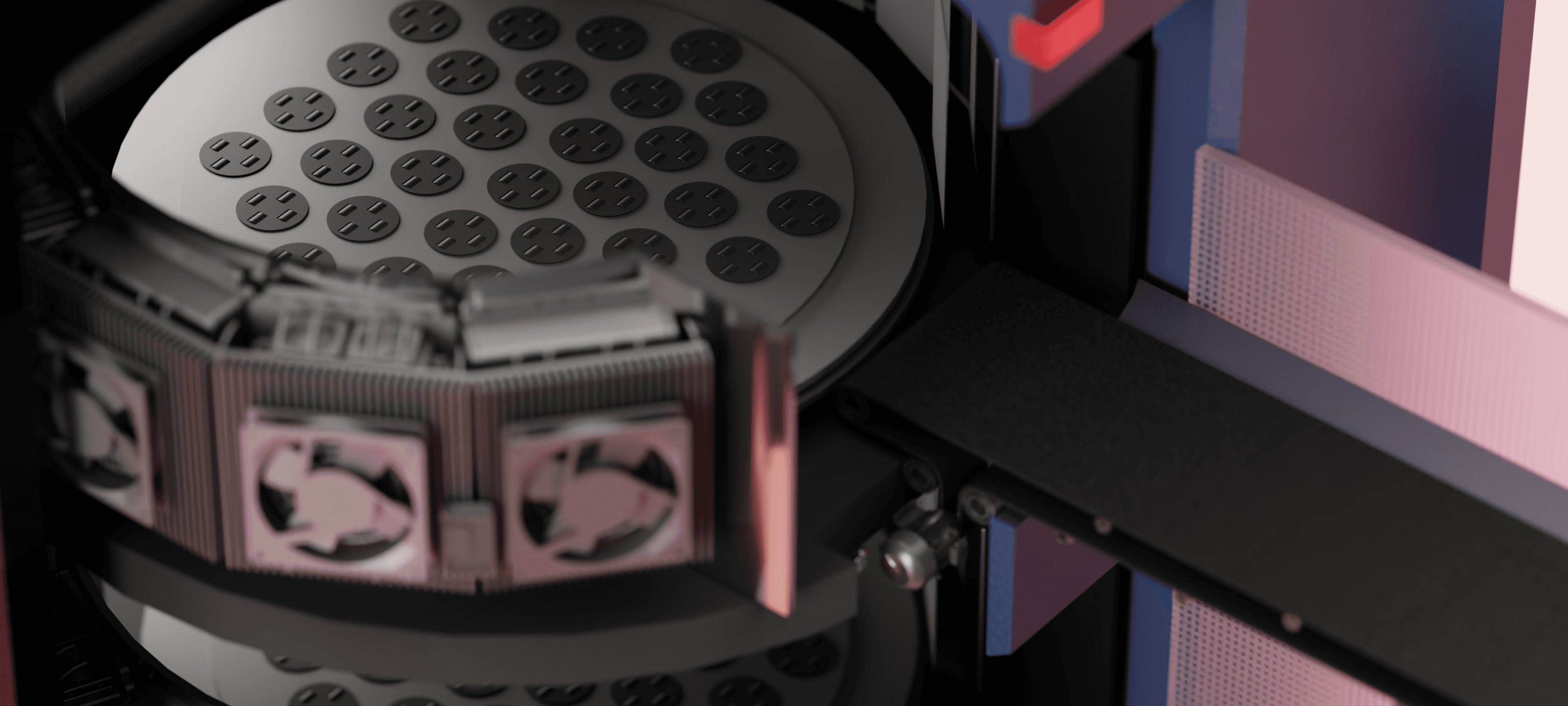

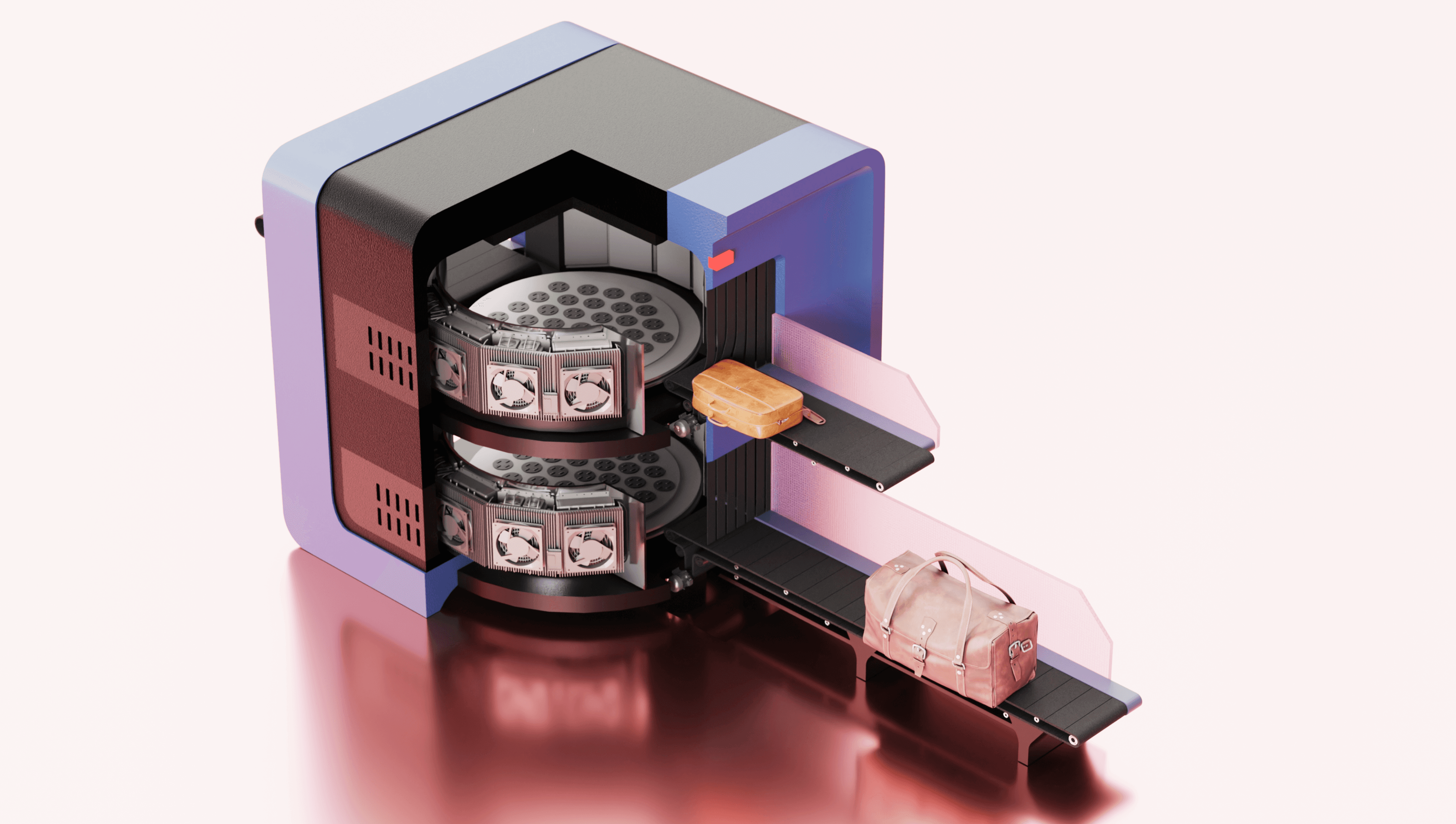

3D MODELS & DETAILS

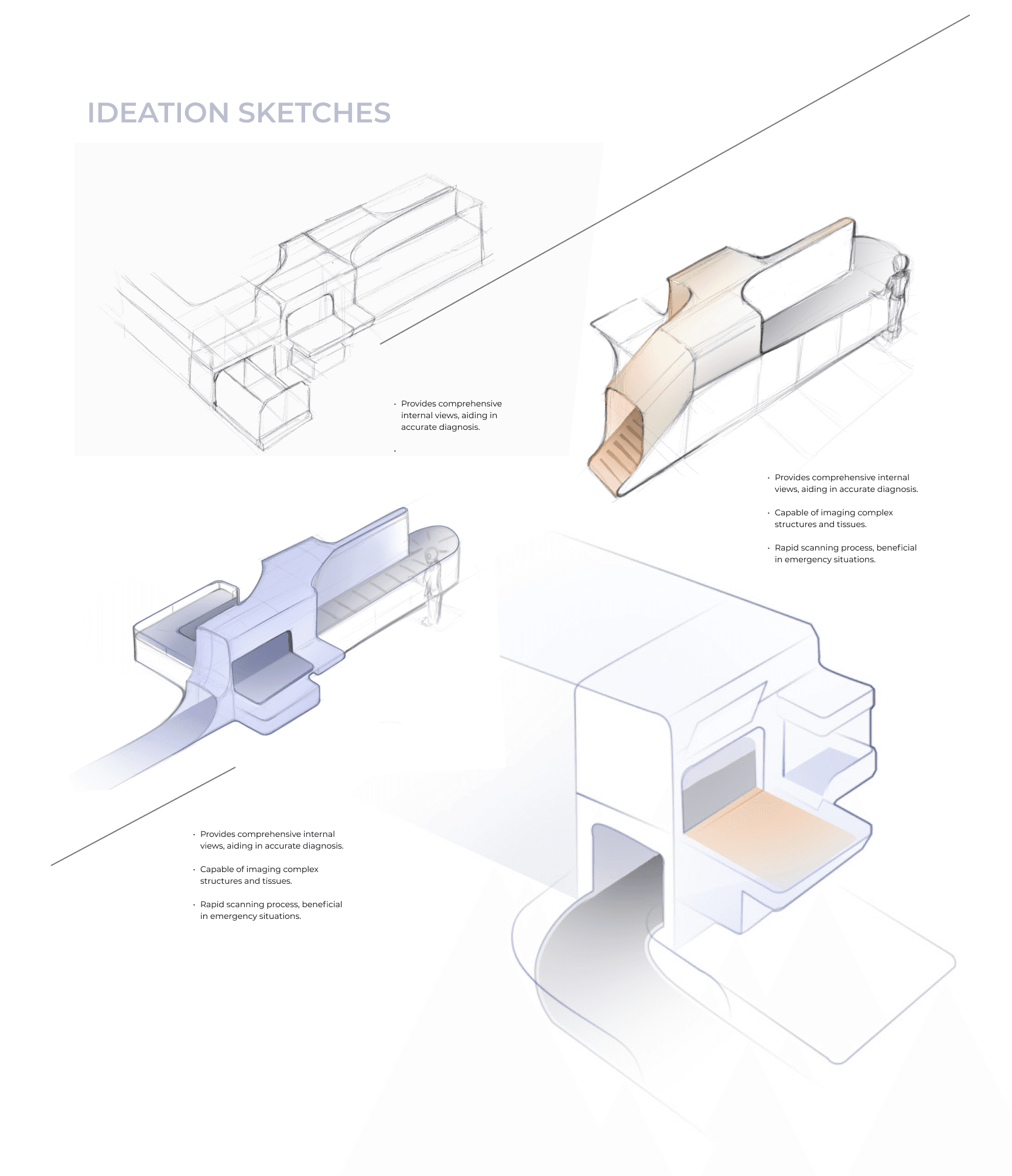

Provides comprehensive internal views, aiding in accurate diagnosis. Capable of imaging complex structures and tissues. Rapid scanning process, beneficial in emergency situations.
Provides comprehensive internal views, aiding in accurate diagnosis. Capable of imaging complex structures and tissues. Rapid scanning process, beneficial in emergency situations.
Provides comprehensive internal views, aiding in accurate diagnosis. Capable of imaging complex structures and tissues. Rapid scanning process, beneficial in emergency situations. Provides comprehensive internal views, aiding in accurate diagnosis. Capable of imaging complex structures and tissues. Rapid scanning process, beneficial in emergency situations.
X-RAY PANELS
Provides comprehensive internal views, aiding in accurate diagnosis. Capable of imaging complex structures and tissues. Rapid scanning process, beneficial in emergency situations.

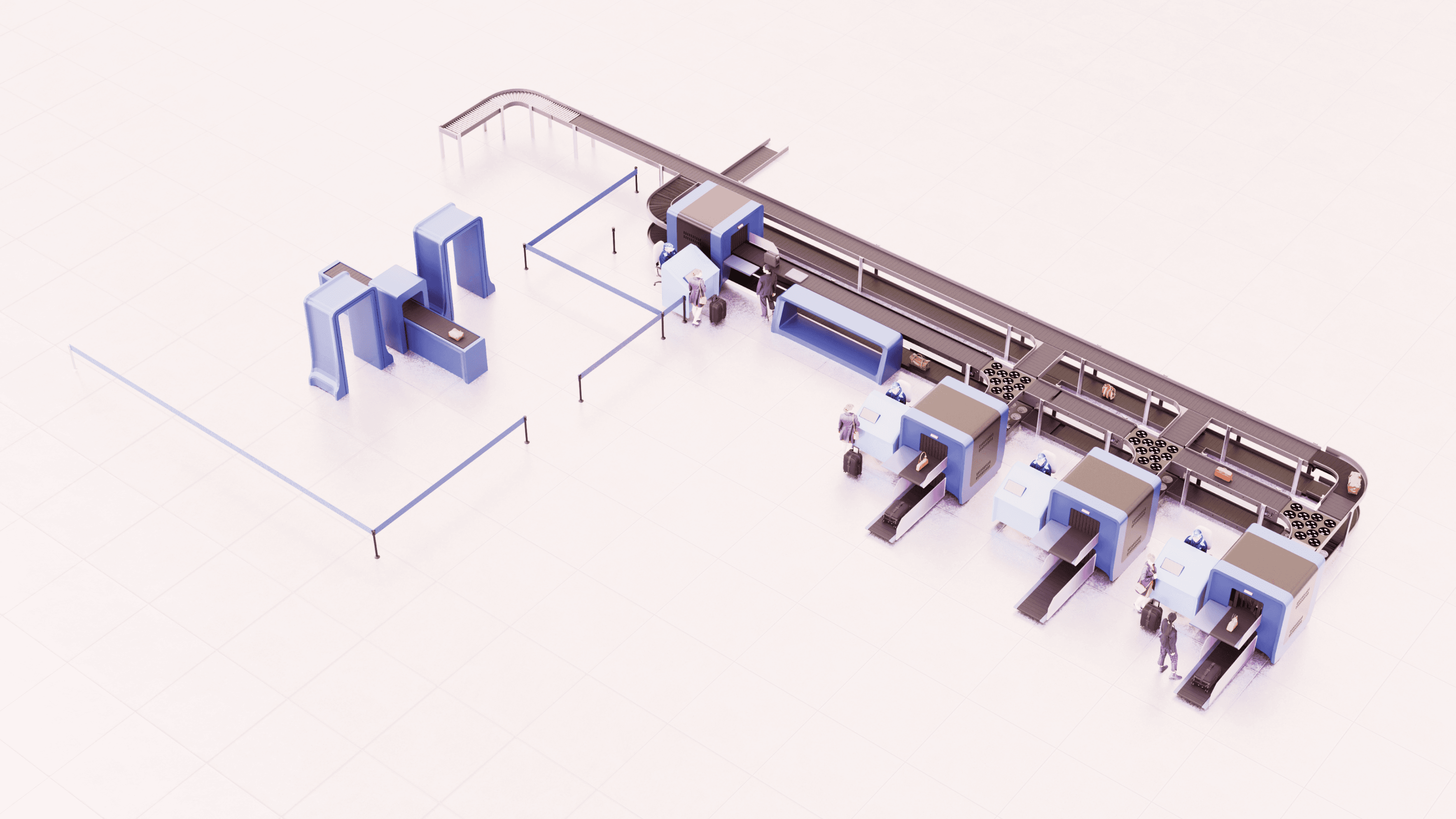

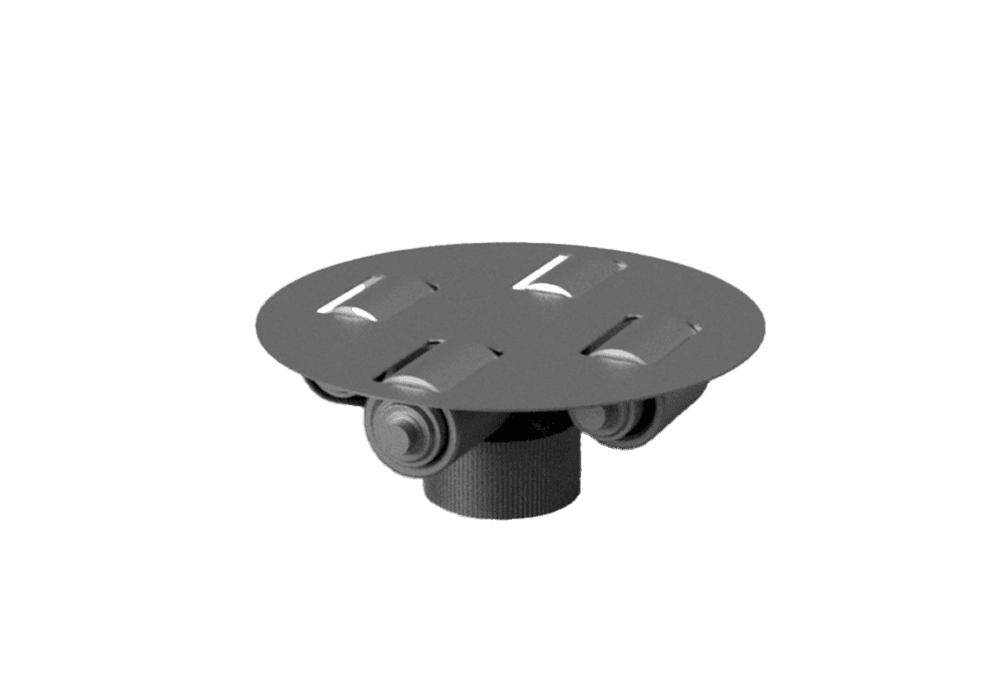

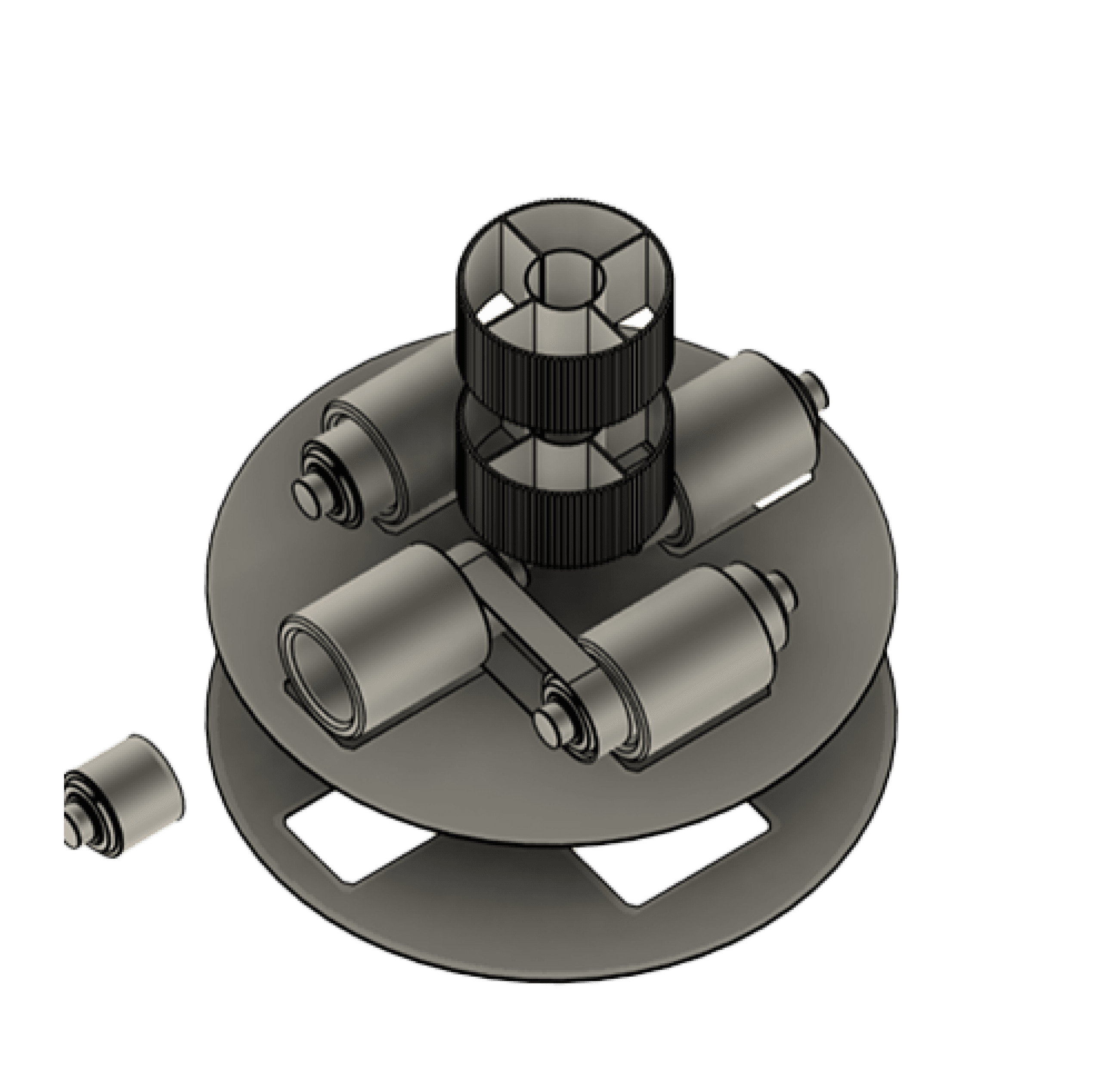

WHEEL SORTER
Gives passengers time and space to rearrange their bags before Security check.
Improves the overall passenger experience...those with compliant baggage aren’t delayed because of others.
Increases efficiency by allowing more passengers to be processed in the same amount of time.
Modular design can fits different airport layouts and space constraints.
reduces the time passengers spend in queues; Cuts down on waste and money lost from throwing away restricted items during security checks.
Lowers the chances of checked-in bags being left behind at airport due to restricted items; Saves airlines money reducing the hassle of dealing with left-behind luggage.
fh
X-RAY PANEL

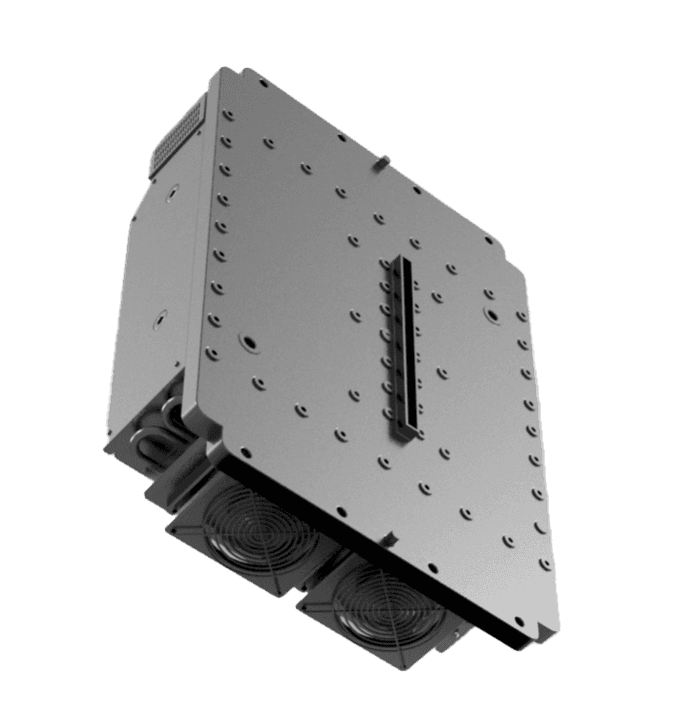

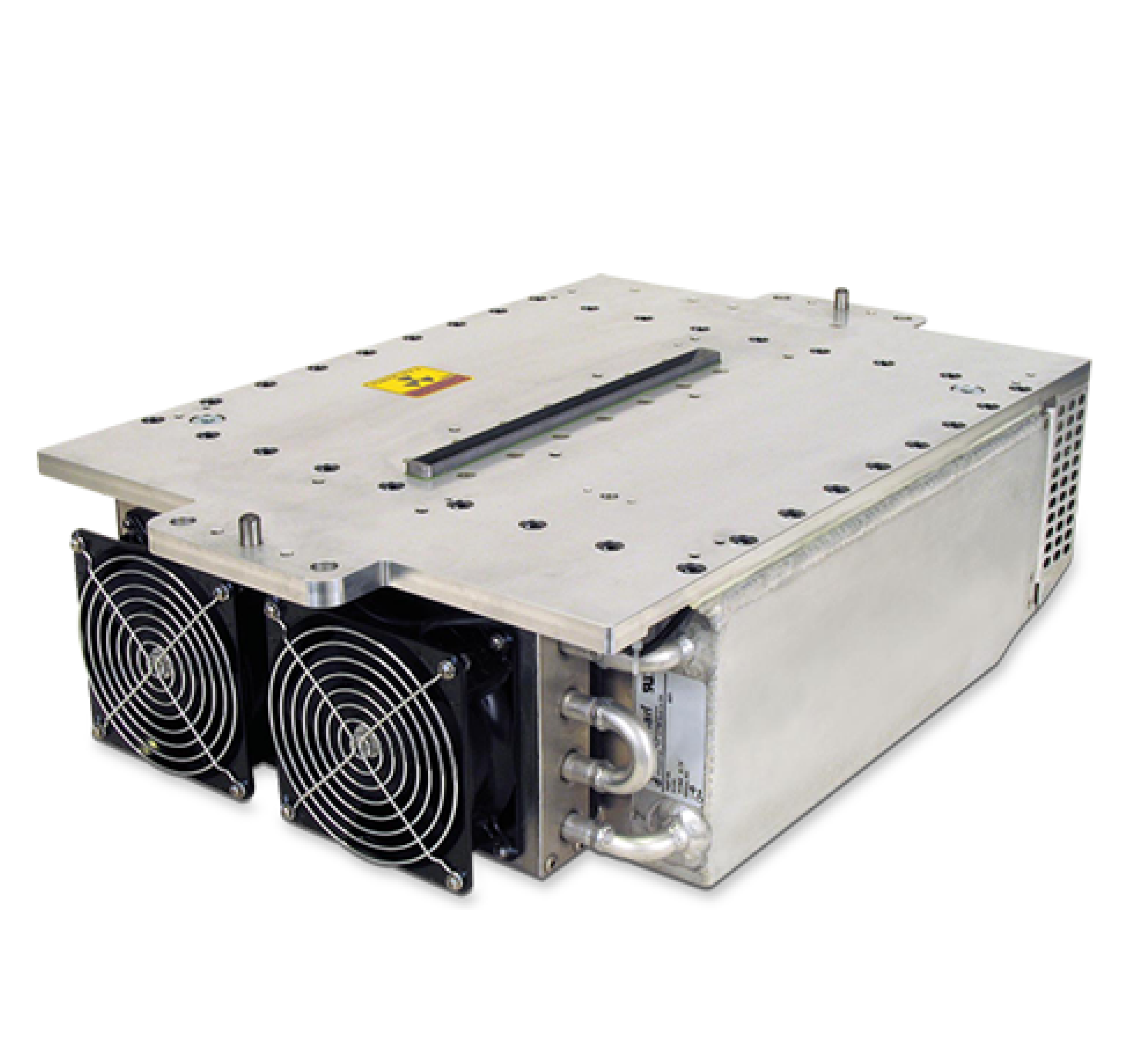

Spellman XRB160PN480/CT Monoblock
Industrial X-Ray Generators
Integrated HV Supply, Filament Supply, X-Ray Tube, Beam Port and Control Electronics
Compact & Lightweight
Can be Mounted in Any Physical Orientation

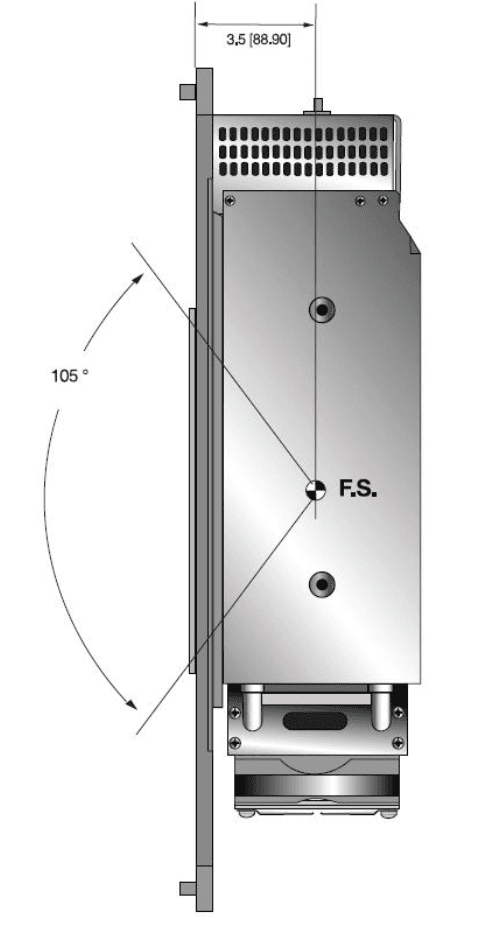

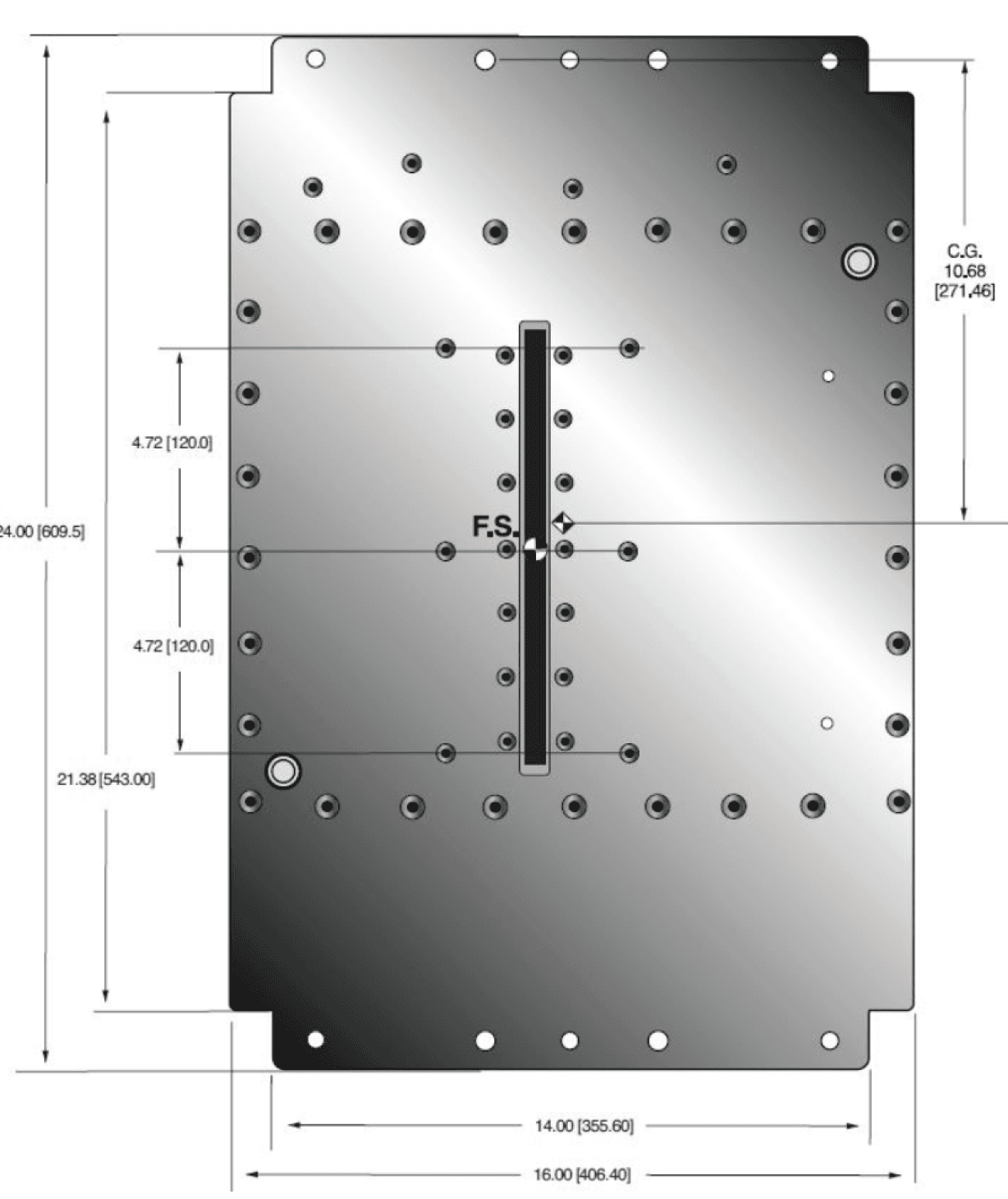

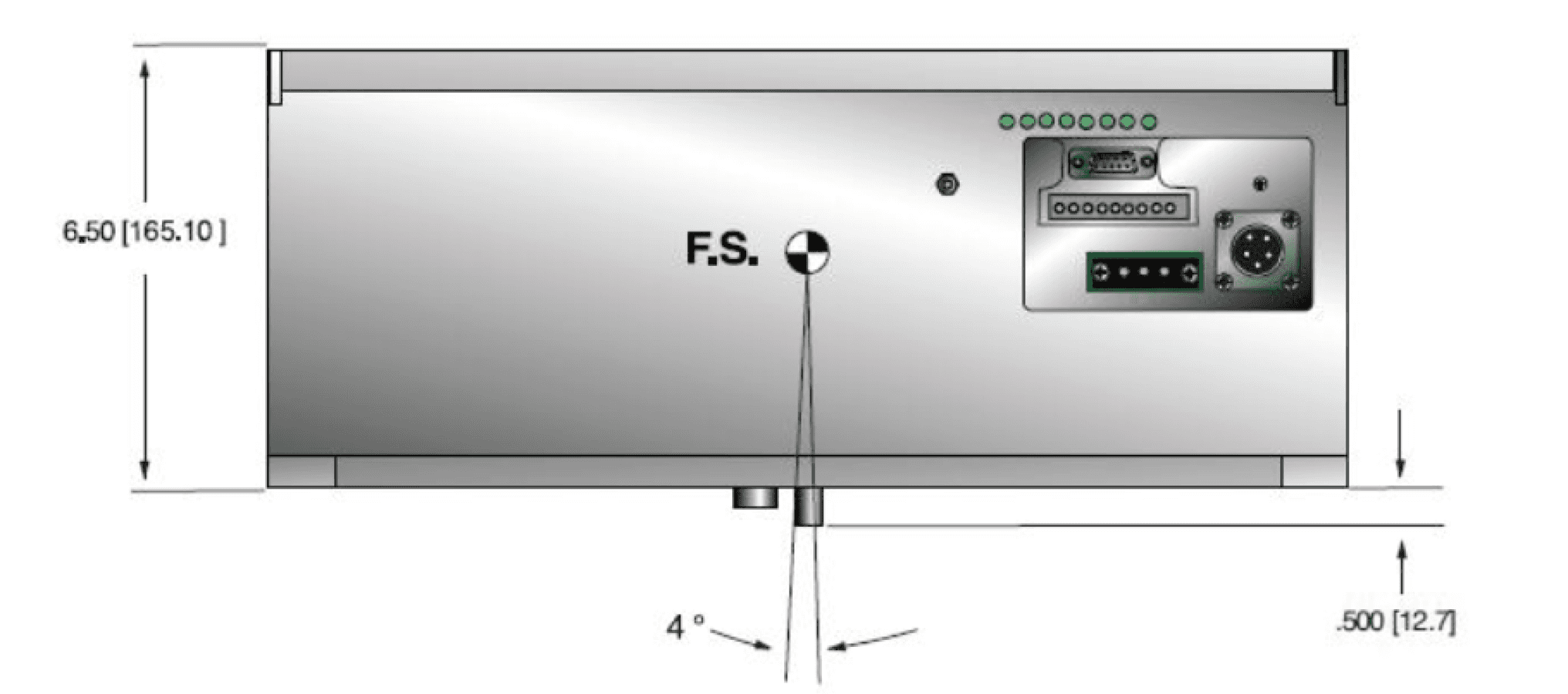

Front View
Back View

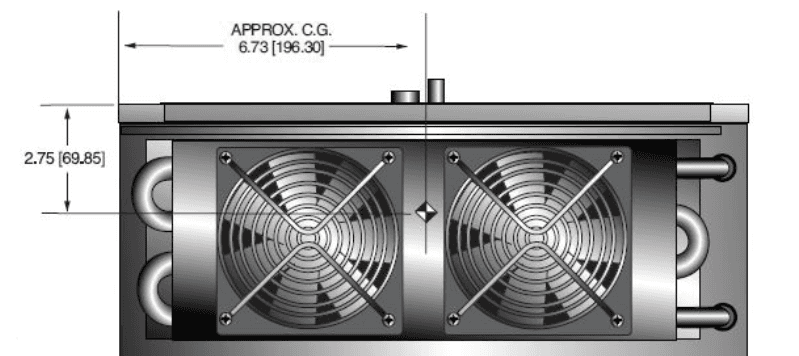

Top View
Side View
https://www.spellmanhv.com/en/high-voltage-power-supplies/XRB160PN480-CT
X-RAY PANEL
Spellman XRB160PN480/CT Monoblock
Industrial X-Ray Generators
Integrated HV Supply, Filament Supply, X-Ray Tube, Beam Port and Control Electronics
Compact & Lightweight
Can be Mounted in Any Physical Orientation
Front View
Back View
Top View
Side View
https://www.spellmanhv.com/en/high-voltage-power-supplies/XRB160PN480-CT
